Overview

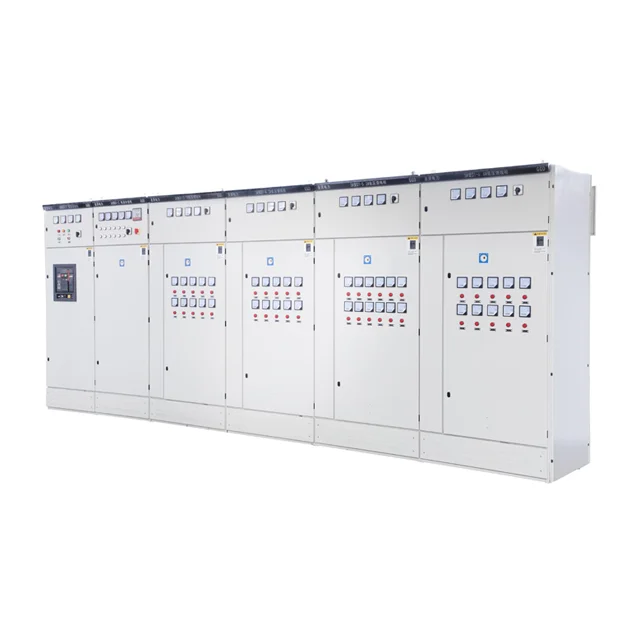

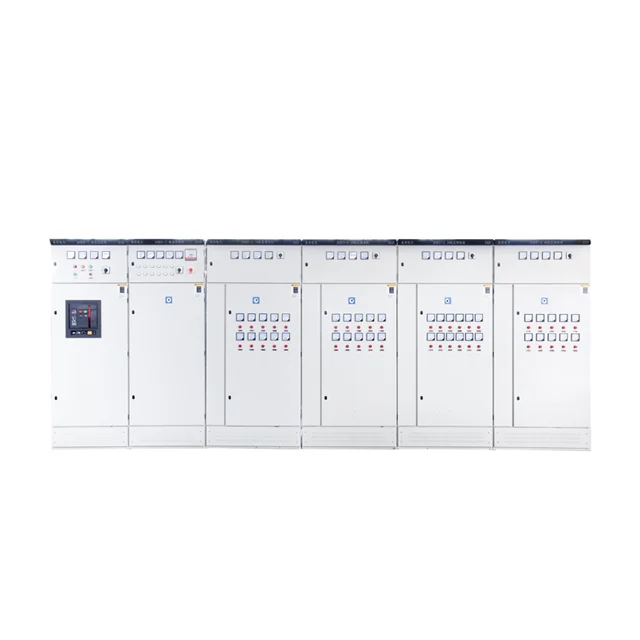

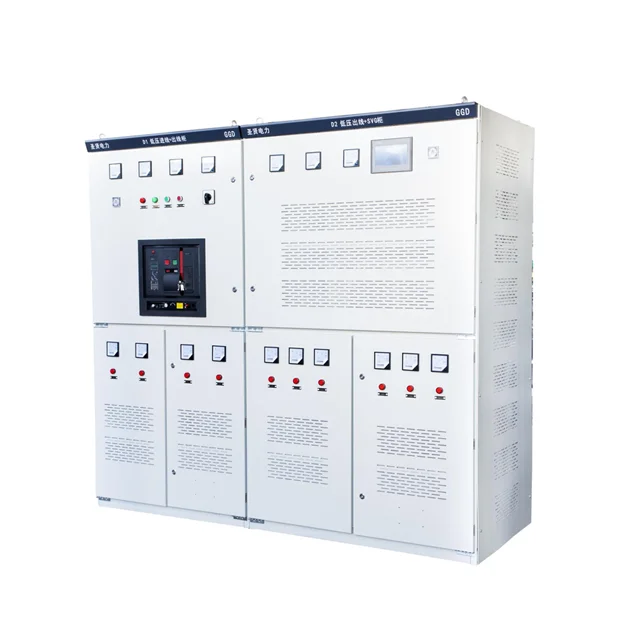

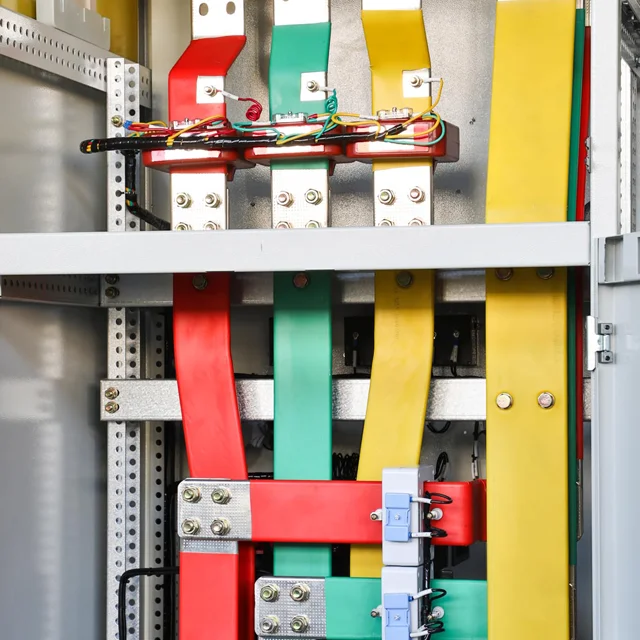

The GGJ low voltage capacitor compensation cabinet corrects the power factor of a low voltage distribution system by switching capacitor steps in and out as the reactive load changes. Through precise reactive power compensation algorithms it can stably raise the power factor of the distribution system to above 0.95.
On measured results from various industries the cabinet helps users reduce line losses by 15%–30%. For a medium-sized factory with a monthly power consumption of 1 million kilowatt-hours, this corresponds to an electricity cost reduction of approximately 20,000 to 50,000 yuan per month.
The cabinet body is designed with an IP30 protection level and internal components are selected from international brands such as Schneider and ABB. With the intelligent temperature control system developed by Shengxian Electric Power, it can operate continuously and stably in an ambient temperature range of −20°C to 45°C, with a mean time between failures (MTBF) of more than 8,000 hours.
Key Features
- Dynamic and precise compensation technology — a 16-bit high-speed MCU controller gives a compensation response time of ≤200ms and tracks load reactive changes in real time, avoiding the over compensation and under compensation problems of traditional compensation cabinets.
- Intermittent load performance — well suited to intermittent load scenarios such as machine tools and injection molding machines, with a compensation accuracy error controlled within ±2%.

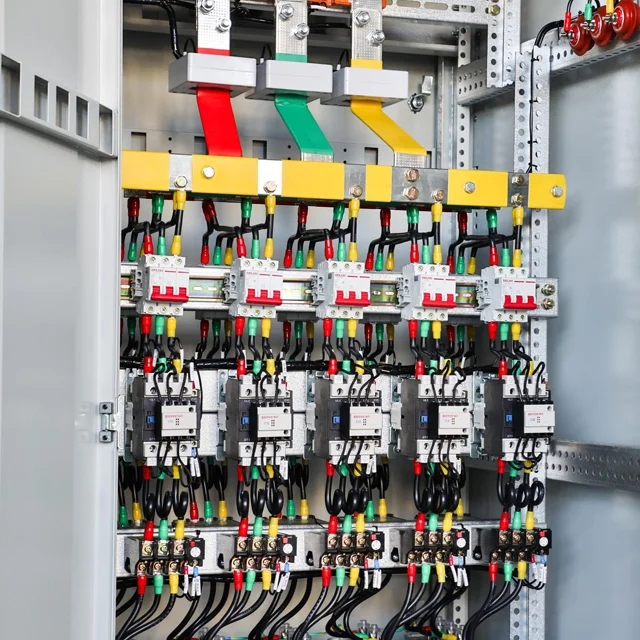

- Modular design — compensation units use standardized modules, with single module capacity covering 5kvar–30kvar, and support demand-based combination expansion.
- Intelligent monitoring — a 4.3-inch touch screen and RS485 communication interface display 12 operating parameters in real time, including power factor, voltage and current, and support linkage with the distribution monitoring system for remote operation and maintenance and data traceability.
- Sixfold safety protection — built-in overvoltage, overcurrent, harmonic suppression (optional 7% filter reactor) and capacitor over-temperature protection among the six safety mechanisms.
- Long capacitor life — capacitors adopt self-healing metallized film material with a service life of up to 100,000 hours, 50% longer than ordinary capacitor cabinets.
- Stable operation guarantees — IP30 cabinet body, international brand internal components and intelligent temperature control keep maintenance costs and downtime risk low.
Technical Specifications
| Model | GGJ |
|---|---|
| Product type | Low voltage capacitor compensation cabinet |
| Target power factor | Above 0.95 |
| Line loss reduction | 15%–30%, based on measured results in various industries |
| Cabinet protection level | IP30 |
| Ambient operating temperature | −20°C to +45°C |
| Mean time between failures (MTBF) | More than 8,000 hours |
| Controller | 16-bit high-speed MCU |
| Compensation response time | ≤200ms |
| Compensation accuracy error | Controlled within ±2% |
| Compensation module capacity | 5kvar–30kvar per module, standardized modules |
| Expansion | Demand-based combination expansion of standardized modules |
| Monitoring interface | 4.3-inch touch screen, RS485 communication interface |
| Parameters displayed | 12 operating parameters including power factor, voltage and current |
| Internal components | International brands such as Schneider and ABB |
| Harmonic suppression | Optional 7% filter reactor |
| Capacitor material | Self-healing metallized film |
| Capacitor service life | Up to 100,000 hours |
Applications
- Machine tool workshops — intermittent loads where reactive demand swings rapidly.
- Injection molding plants — loads that cycle between high and low reactive demand.
- Medium-sized factories — sites with high monthly consumption where line losses and power factor penalties matter.
- Distribution systems with monitoring — installations using a distribution monitoring system that the cabinet can be linked to over RS485.
- Installations with harmonics — sites that need the optional 7% filter reactor for harmonic suppression.
Installation Conditions
- The cabinet is rated IP30, so it is intended for indoor installation in a distribution room rather than in a dusty or wet outdoor location.
- Ambient temperature at the installation point must stay within the −20°C to 45°C operating range.
- Allow space for the capacitor steps and modules to be serviced, and for the cabinet ventilation to work with the intelligent temperature control system.
- Where the RS485 interface is used for remote operation and data traceability, route the communication cable to the distribution monitoring system.
- Where harmonic suppression is required, the optional 7% filter reactor must be specified with the order.
How to Select
- Total reactive power to be compensated, and the resulting number and capacity of modules (each module covers 5kvar–30kvar).
- Whether the load is steady or intermittent — intermittent loads such as machine tools and injection molding machines benefit most from the ≤200ms dynamic response.
- Whether harmonic suppression is needed, in which case the optional 7% filter reactor should be specified.
- Whether remote operation and data traceability are required through the RS485 interface and the distribution monitoring system.
- The target power factor, typically above 0.95, and the monthly consumption used to estimate the reduction in line losses.
FAQ
What power factor can the GGJ cabinet reach?
Through precise reactive power compensation algorithms it can stably raise the power factor of the distribution system to above 0.95.
How much can it reduce electricity costs?
It helps users reduce line losses by 15%–30%. For a medium-sized factory with a monthly power consumption of 1 million kilowatt-hours, the electricity cost reduction is approximately 20,000 to 50,000 yuan per month.
How fast does the compensation respond?
The cabinet is equipped with a 16-bit high-speed MCU controller and the compensation response time is ≤200ms, so it can track load reactive changes in real time and avoid over compensation or under compensation.
What is the capacity of each compensation module?
Compensation units use standardized modules, and single module capacity covers 5kvar–30kvar. Modules support demand-based combination expansion.
Can the cabinet be monitored remotely?
Yes. It is equipped with a 4.3-inch touch screen and an RS485 communication interface, displays 12 operating parameters including power factor, voltage and current, and supports linkage with the distribution monitoring system for remote operation and maintenance and data traceability.
What safety protections are built in?
The cabinet has six built-in safety mechanisms, including overvoltage, overcurrent, harmonic suppression (optional 7% filter reactor) and capacitor over-temperature protection.
How long do the capacitors last?
The capacitors adopt self-healing metallized film material with a service life of up to 100,000 hours, 50% longer than ordinary capacitor cabinets.
